  • Material: SS304/SS316 or Customized
  • Feature: No friction with other rotating components
  • Size: Customized
  • Environment: High speed applications and high temperatures

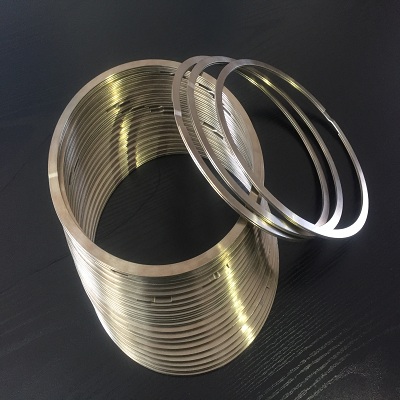

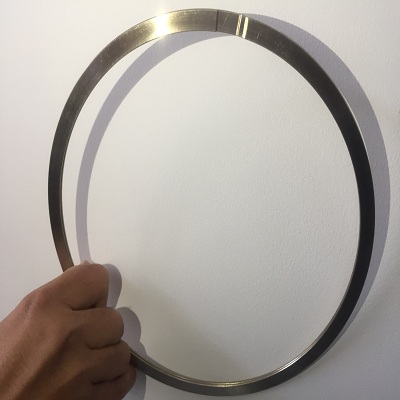

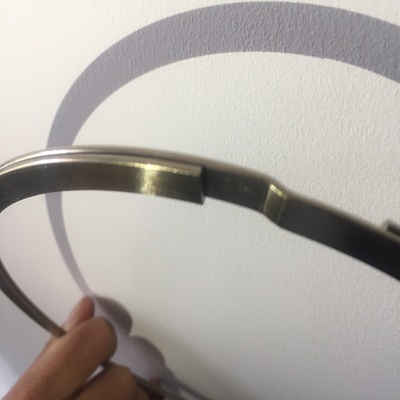

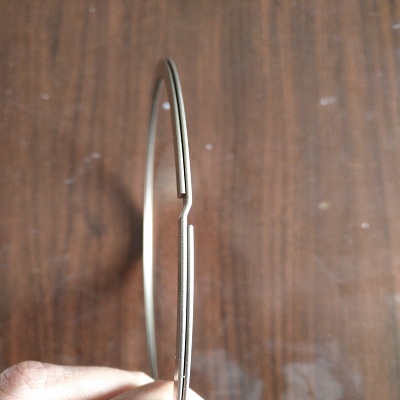

  • Product description: Caster laminar ring is a metallic labyrinth seal consisting of multiple rings in a groove. We have been manufacturing laminar seal ring in China since 2002.
  • INQUIRY

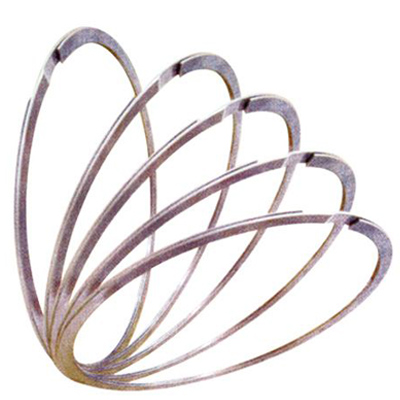

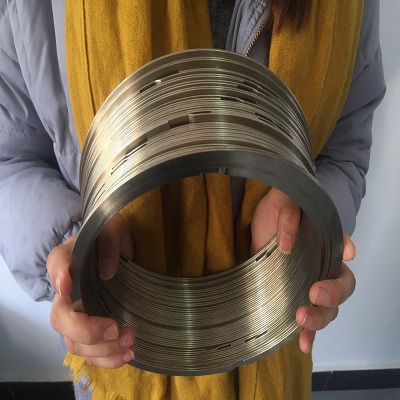

Laminar Ring | Laminar Seal Ring | spiral retaining ring

Caster laminar ring is a metallic spiral retaining ring consisting of multiple rings in a groove. laminar rings are used as sealing elements for rotating and static sealing applications. our laminar rings are produced in-house and are high quality.

We mastered and perfected laminar ring making technology since early 2000s. Our laminar ring adhere to the strictest standard. Every aspects of our laminar ring can be tested, like chemical composition, mechanical property.

If you have used laminar rings before, you don't need to worry about compatibility. because our laminar ring is produced according to the international standard.

laminar ringlaminar ringlaminar ringlaminar seal ring

The following is other country's standard:

USA Germany

QH

FK3 AS

QHK

FK3 ASK

QS

FK3 IS

QSK

FK3 ISK

QHD

FK6 ASD

QHKD

FK6 ASKD

QSD

FK6 ISD

QSKD

FK6 ISKD


FK 5


Pricing & Availability:

Our laminar rings cost less than the German and US ones.

Laminar rings are not in stock. you place an order, we produce according to your requests.

When your order quantity picks up, the price is negotiable. The MOQ is 100 sets.

Quality:

If the quality doesn't match your expectation, you can ask us for refund or replacements.

And you can start your order small.

Applications:

Laminar seal rings are currently in service in various industrial applications. The unique features of laminar ring make it an excellent choice when operating conditions exceed the capabilities of standard lip seals. Caster laminar ring can be engineered into most existing applications with nominal modifications.

Note :

  1. FK6 lSD, Inside Clamping Double Rings, 1 set = 2 rings ( for shaft )  No speed limit for housing, Speed limit for shaft: max 10 m/s
  2. FK6 lSKD, Inside Clamping Double Rings Combination, 1 set = 3 rings(2 for shaft, 1 for bore) No limit for housing, Speed limit for shaft: max 10m/s.
  3. FK6 ASD, Outside Clamping Double Rings, 1 set = 2 rings( for bore) No speed limit for housing or ring carrier.
  4. FK6 ASKD, Outside Clamping Double Rings Combination, 1 set = 3 rings(1 for shaft, 2 for bore) No speed limit for housing, Speed limit for ring carrier max 10m/s.
  5. FK3 lS, Inside Clamping, 1 set = 3 rings(for shaft) No speed limit for housing, Speed limit for shaft: max 4 m/s.
  6. FK3 AS, Outside Clamping, 1 set = 3 rings(for bore) No speed limit for housing or ring carrier.
  7. FK3 lSK, Inside Clamping Combination, 1 set = 5 rings(3 for shaft, 2 for bore) Speed limit for shaft: max 4 m/s, Speed limit for housing: max 10 m/s.
  8. FK3 ASK, Outside Clamping Combination, 1 set = 5 rings(2 for shaft, 3 for bore) Speed limit for housing: max 10 m/s, Speed limit for ring carrier: max 4m/s.
  9. FK5 Single and Double Wound Sealing Rings.
  10. We also produce VH & VS, WH & WS, EH & ES, WHT & WST, WHM & WSM, DNH & DNS series.

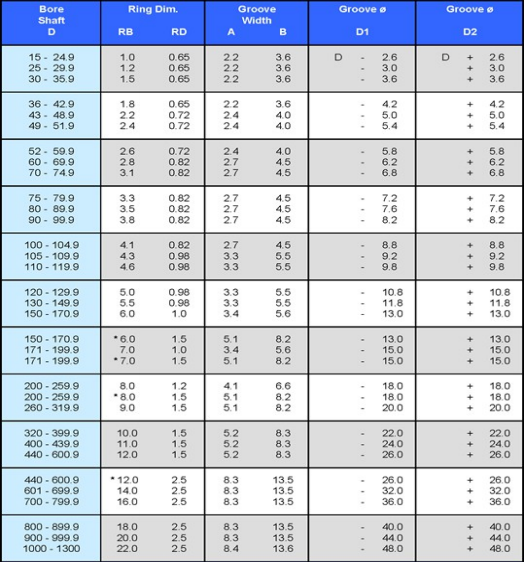

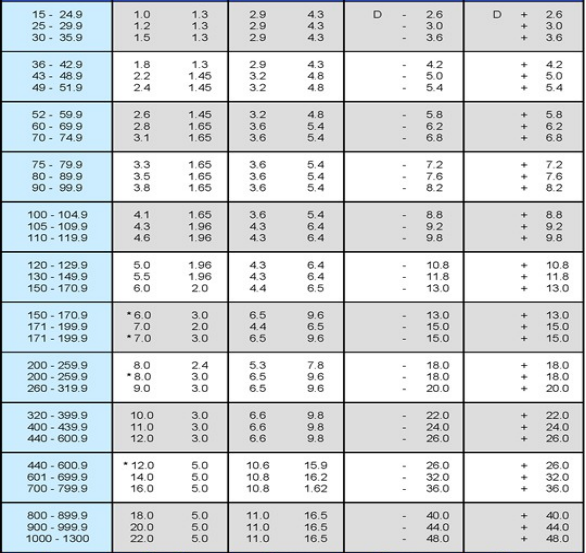

Dimensions of Fk3/FK5 single wound sealing ring:

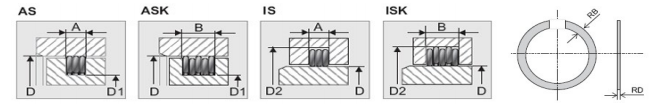

FK3/FK5 single wound laminar ring

Fk3/FK5 single wound sealing ring

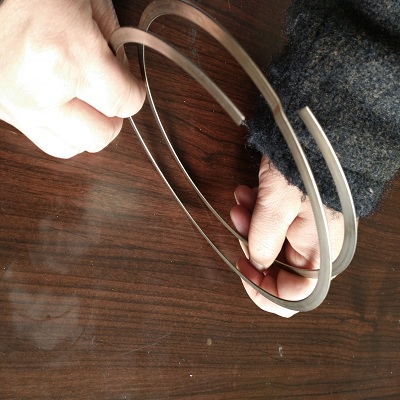

Dimensions of FK6/FK5 double wound sealing ring:

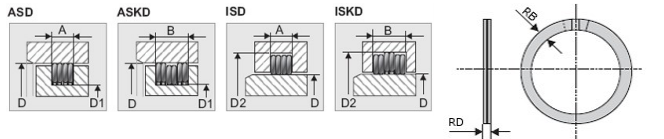

FK6/FK5 double wound laminar ring

FK6/FK5 double wound sealing ring

laminar ring comes with various sizes and using different materials, If you want a quote, please tell us your needed material and type and size. E.g. Material: SS304 FK5 ISD 170x6.0x2.0
