chromium carbide plate

Caster chromium carbide plate is a weld overlay plate made from a mild steel base plate overlaid with chromium carbide.

The overlaid part is the wear resistant side. It's for heavy duty, replacing your usual steel wear plate like NM500.

Features & Benefits:

  1. Cost effective solution when compared to traditional abrasion-resistant steels
  2. Recommended for resistance to wear by abrasion, fretting, cavitation, and particle erosion in high temperature applications (up to 1100°F).
  3. Ideal for mild to moderate impact abrasion resistance.
  4. Low maintenance cost and easy installation.
  5. The overlay surface of CCO plate will consist of a series of beads with numerous hairline cracks in them. These properly spaced crosscheck cracks are a natural phenomenon and are beneficial to the material. The cracks propagate through the overlay and end at the fusion line.


Application Specifications:

  1. Cutting – Plasma burning, air arc, abrasive saw or water jet.
  2. Welding – Our CCO overlay plate can be joined by welding the substrate to substrate using 309 weld wire/rod.
  3. Bending – Using a press brake, forming should be perpendicular to the weld pass direction. Plate rolling should be performed in the directions of the overlay beads.

Technical Specifications & Chemical Composition:

Product Name
chromium carbide plate
HS Code
7210900000
Brand
Caster (Chinese pinyin initial: KST)
Base Plate
Q235/Q345
Hardfacing layer
Chromium carbide overlay
Chemical Composition
C(%): 3.0-5.0, Cr(%): 23-27, Mn(%): 2.0-3.0, B(%): 0.7-1.0
Microstructure
The carbide (Cr7C3) volume fraction on the microstructure is above 50%.
Hardness
HRC58-62
Surface Treatment
Overlay, Hardfacing, cladding, coated.
Technique
Hardfacing, open arc welding, submerged arc welding.
Wear Resistance
High wear resistance, 30 times higher than low carbon steel and 12 times than heat treated steel.
Impact Resistance
Medium.
Flatness tolerance
±3mm/m.
Thickness tolerance
Uniform overlay thickness, with tolerance within 0-0.5mm.
Main Thicknesses
3+3,4+4, 5+5
6+4,6+5,6+6,6+8
8+4,8+5,8+6,8+7,8+8
10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20
12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12
14+6,14+8,14+10,16+6,16+8,16+10

18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10

Customized.

Plate Size
Standard chromium carbide plate size:1400*3400mm
Any other size also can be Customized.
Place of Origin
China.
Application
Mining, Steel, Cement, Power, Port, etc.

Performance comparison:

Item Hardness(HRC) Max service temperature Abrasion Impact Processibility Service life
Steel plate 35-55 Low ★★
Hardox 37-57 600 ★★ ★★ ★★★ ★★
NM 33-42 600 ★★ ★★ ★★★ ★★
Caster wear plate 58-62 600 ★★★ ★★★ ★★ ★★★★

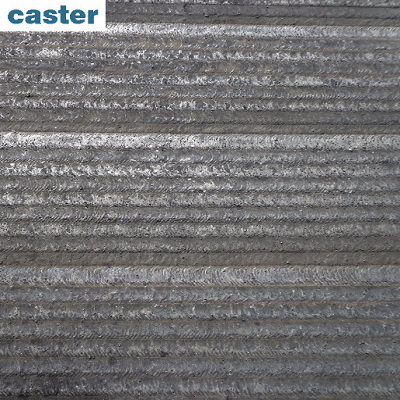

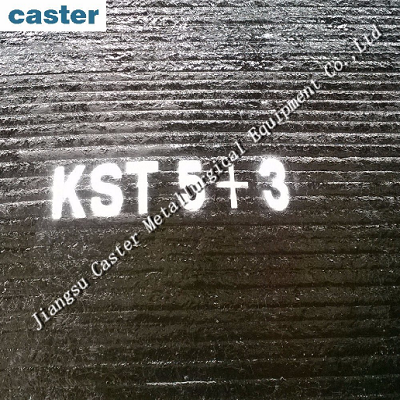

Product display of our chromium carbide plate

Direct Factory Produce Bimetallic Composite Chrome Carbide Overlay Plate

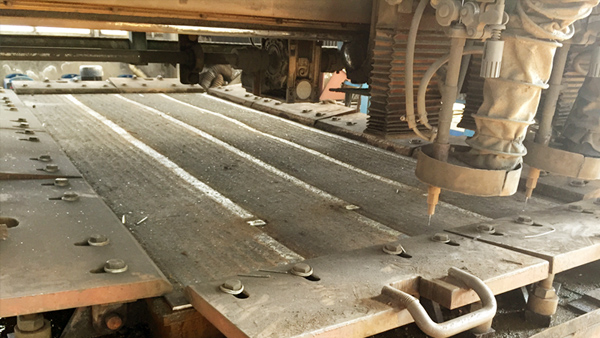

Pictures of chromium carbide plate manufacturing process

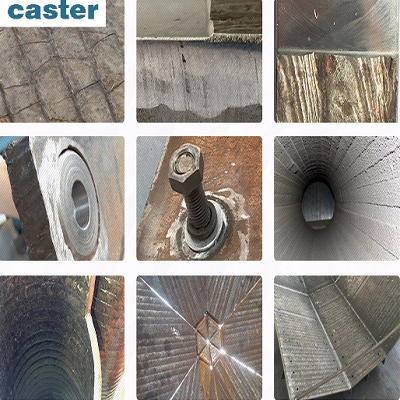

Field application
Direct Factory Produce Bimetallic Composite Chrome Carbide Overlay Plate

Quality inspection
Direct Factory Produce Bimetallic Composite Chrome Carbide Overlay Plate

Packaging & Shipping

Direct Factory Produce Bimetallic Composite Chrome Carbide Overlay Plate

Packaging: Steel pallet, Non fumigation pallets,Customized

Packaging Size: 1.4*3.4, 1.4*.3.0, customized.
Delivery Detail: Generally it is 5-10 days, it is according to quantity.


Industry application of chromium carbide plate

Cement industry
The cement industry has provided our biggest customer base since our founding. the severe abrasion experienced in cement mills, chutes and hoppers, gives the industry a serious need for equipment protections. Our chromium carbide overlay plate/lining provide the best solutions in the world for cement mill rollers of all types.


Mining industry
Face it, no matter what minerals you are mining, there is no escaping the abrasion experienced by mining equipment. not only can we reduce equipment damage to hopper and chutes, but our chromium carbide overlay plate lining can significantly extend the life of dump trucks, excavating equipment, and transport equipment.
Coal power industry
the reliable movement of coal is crucial to the coal power industry. when chutes and hoppers need to be replaced, the replacement and repair service costs are expensive, and the downtime can hurt the bottom line. reduce the down time, and extend the life of your equipment with solutions from CASTER chromium carbide overlay wear plate.
Steel industry
the steel industry experiences great wear and tear on its equipment that transports raw ore into its processing areas, CASTRT chromium carbide overlay wear plate protection on chutes and hoppers reduces down time and replacement costs.
Construction Equipment
Wear resistant steel plate(abrasion resistant steel plate) for the protection of the active surfaces of many types of construction equipment. Companies that use dump trucks, bulldozers, and other vehicles used in the construction industry are also our customers.
Other industries
the chromium carbide overlay, hardfacing,or protective cladding services provided by our company can extend the service life of equipment used in many other industries, where heavy equipment experiences wear and abrasion. any industry using hoppers and chutes can benefit from the protection of our chromium carbide overlay plate.

After sales

Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer’s problems.If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
