wear pipe

  • CCO pipe
  • CCO pipe
CCO pipeCCO pipe

CCO pipe

  • Hardness:HRC58-65
  • Thickness:3-25 mm
  • Material:Q235/Q345+Chromium carbide
  • Minimum ID:80mm
  • Product description: CCO pipe means chromium carbide overlay pipe which is made from seamless steel tube overlaid with chromium carbide through open arc welding process. Both inside or outside.
  • INQUIRY

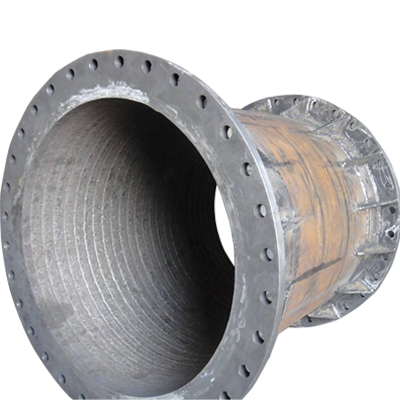

                                                          CCO pipe

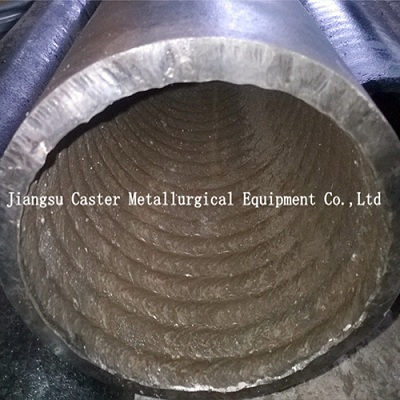

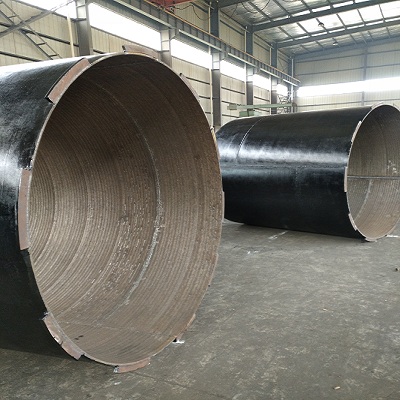

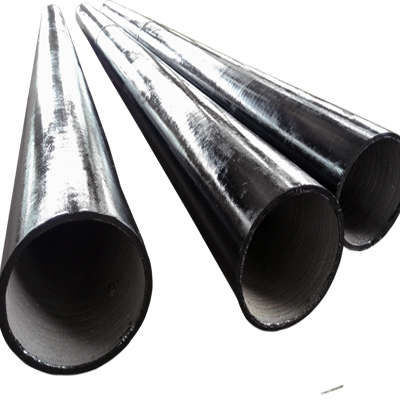

Chromium carbide overlay alloyed anti wear tube
We introduced automatic welding equipments for pipes (internal and external) meeting the increasing demand for small diameter wear pipes.

CCO Pipes features:
1.Steel pipe with  regular base material + overlay, pipes are welded with our automatic welding machine resulting in good shaped and flat surface pipes.
2.Bending the wear plate into round pipe
3.Assembling the wear plate into square pipe
automatic welding, metallurgical bonding, available to weld the minimum pipe diameter of 80mm and maximum pipe length of 3000mm.
Wear Elbow
1.Weld directly on the elbow wall
2.wear plate used to make joint form
Square to Round Transition
Wear plate used to make tube with round top and square bottom.

Product Name
chromium carbide overlay alloyed anti wear tube
Brand
caster
Base Plate
Q235B/Q345
Hardfacing layer
High chromium high carbide overlay (Hard layer face out or face in)
Chemical Composition
C(%): 3.0-5.0  Cr(%): 25-40
Hardness
HRC58-65
Surface Treatment
Hardfacing, clading, coated
Technique
Hardfacing, open arc welding, submerged arc welding
Minimum Inner Diameter
80mm
Wear Resistance
High wear resistance
Thickness
3+3,4+4,5+5,6+4,6+5,6+6,8+4, etc. Customized
Place of Origin
China
Application
Mining, Steel, Cement, Power, Port, etc.

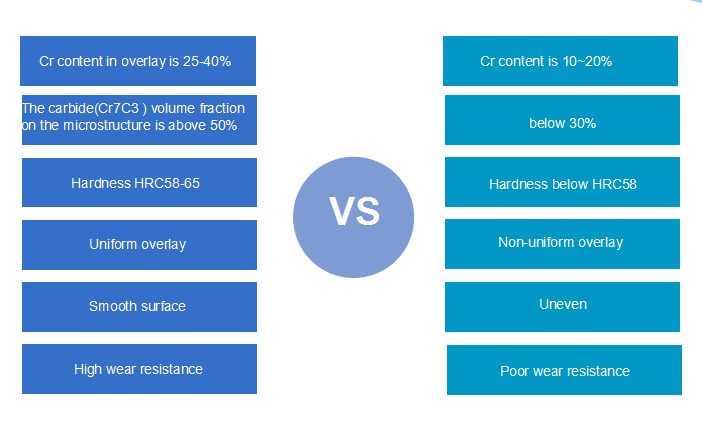

Our Advantages
